- Easily-accessible front-mounted breakers
- Flush-mounted front-facing ME-ARC50 inverter controller
- 5 year warranty on all parts
- Outdoor rated NEMA 3R weatherproof enclosure

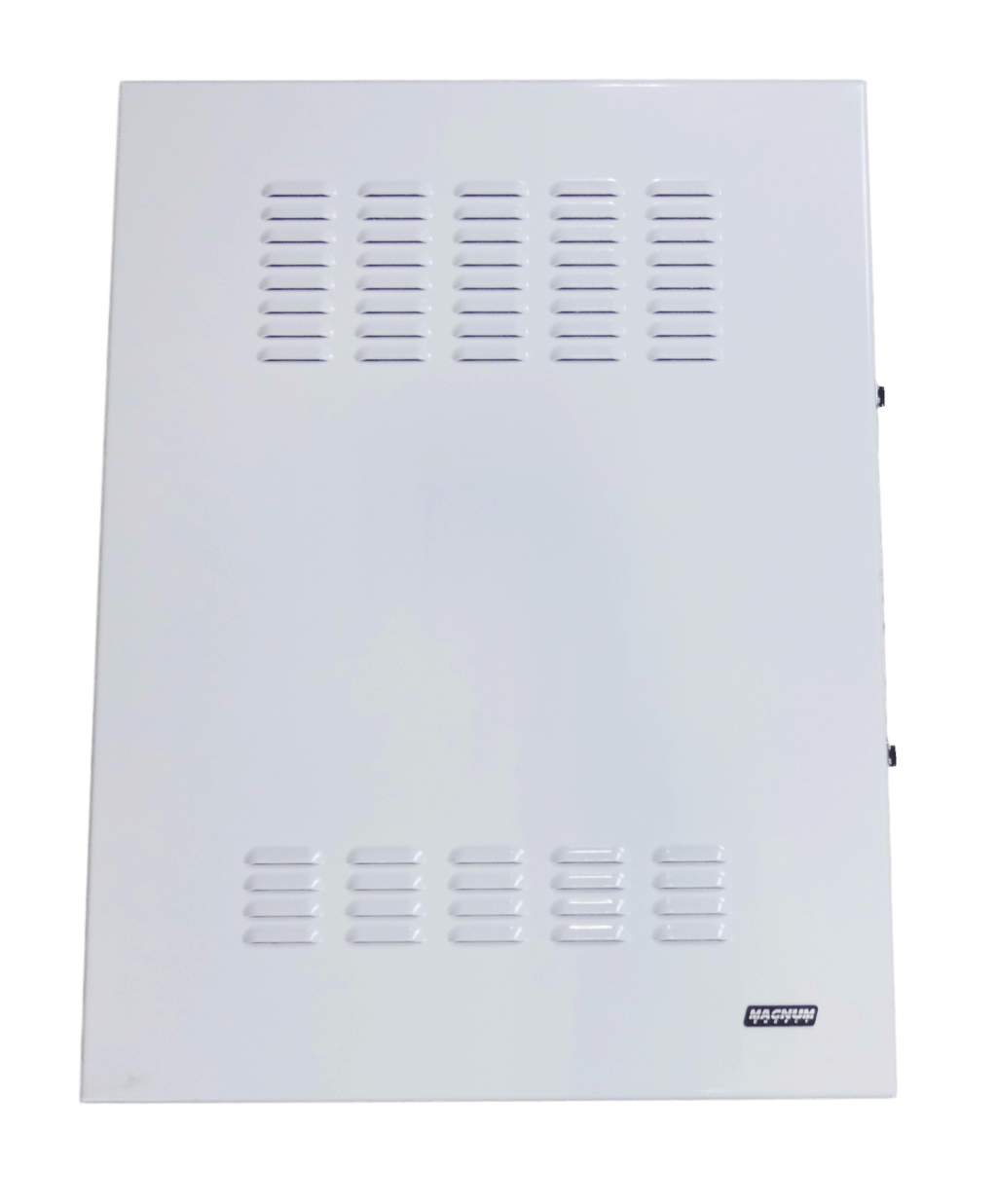

Four Star Solar’s pre-wired and tested Mini Magnum MS4448PAE Power Center comes equipped with a Magnum Energy MS4448PAE 120/240 sinewave inverter, a Mini Magnum Panel pre-assembled with necessary components (See below for a complete list). This version comes in a Magnum MP-ODE outdoor-rated enclosure and can be installed both indoors or outdoors. The enclosure is designed to protect your equipment against rain, sleet, snow and other elements while providing adequate airflow for the inverter.
Since this system has already been assembled and tested, you will significantly save on time and/or labor costs, and the cost of packaged components is also significantly lower. Also, the MS Series inverters that are installed with a Magnum Energy MP or MMP panel carry a five-year warranty, rather than the standard three-year warranty. Feel free to click on the components below to learn more. You’ll also be able to view individual retail pricing.
The new Mini Magnum Panel is called mini because of its small size. Designed to work with magnum inverters, the white powder coated panel fits on top of the magnum inverter, seamlessly organizing all of your safety features. Click on each of the components below to find out just exactly what youre getting.
All Power Centers now come with a full 5-Year Warranty on parts and labor.
- PT-100 charge controller
- Outdoor-rated MP-ODE enclosure (NEMA 3R)
- 3 surge suppressors
- Simple, Safe Installation
- System Monitor Gives Instant Status and "Percent of Full" Battery info
- Attractive White Powder Coated Box with Easy to See Front Facing Controls
- Additional Breaker Space for DIN Rail or Surface Mount Breakers for Optional Equipment
- Inverter Bypass Switch Allows Choice of Generator / Grid or Inverter Output
- Easy to Connect Color Coded Buss Bars for AC and DC Connections
- Multiple Available Knockouts for Conduit Attachments
- Single System Grounding Point
- Clearly Labeled Connection Points for AC and DC Input and Output
- Fully Assembled and Tested by Experienced Factory Trained Technicians
