- Easily accessible front-mounted breakers
- Flush-mounted front-facing ME-RTR inverter controller
- 5 year warranty on all parts

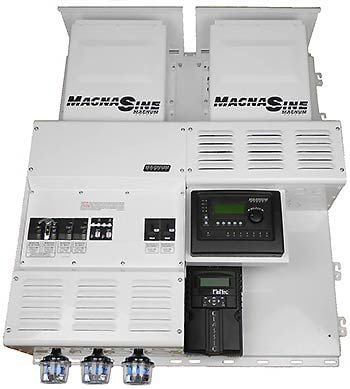

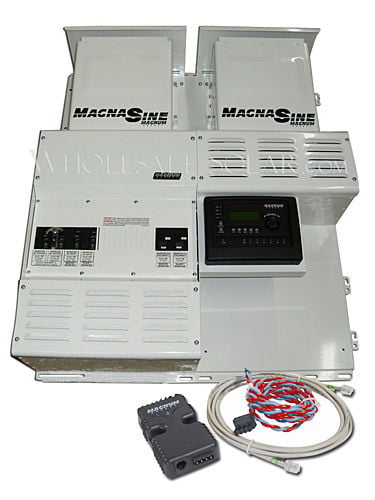

Unbound Solar’s pre-wired and tested Magnum MS4448PAE/2 Dual Inverter Power Center comes equipped with two Magnum Energy MS4448PAE 120/240 sinewave inverters and a MidNite Classic 150 Charge Controller. Mounted on a Magnum MBP-D double back plate, its sophisticated ME-RTR router organizes your connections and allows you to access information on each individual inverter. A Magnum Energy BMK battery monitor is included in this package, so you can keep an eye on your batteries’ performance.
The dual Magnum is 32″ wide and 40″ tall. The unit is 9″ deep when wall mounted.
Since we have already assembled and tested this system, you will significantly save on time and/or labor costs it takes to put a system like this together. The cost of the components, when bought in a package, is also significantly lower. And because the MS Series inverters in this system are installed with a Magnum Energy panel and mounting plate, they carry a five-year warranty, rather than the standard three-year warranty.
All Power Centers now come with a full 5-Year Warranty on parts and labor.
- Four Surge Suppressors
- Two Midnite Classic 150 Charge Controllers
- Simple, Safe Installation
- System Monitor Gives Instant Status and "Percent of Full" Battery info
- Attractive White Powder Coated Box with Easy to See Front Facing Controls
- Additional Breaker Space for DIN Rail or Surface Mount Breakers for Optional Equipment
- Inverter Bypass Switch Allows Choice of Generator / Grid or Inverter Output
- Easy to Connect Color Coded Buss Bars for AC and DC Connections
- Multiple Available Knockouts for Conduit Attachments
- Single System Grounding Point
- Clearly Labeled Connection Points for AC and DC Input and Output
- Fully Assembled and Tested by Experienced Factory Trained Technicians
