Description

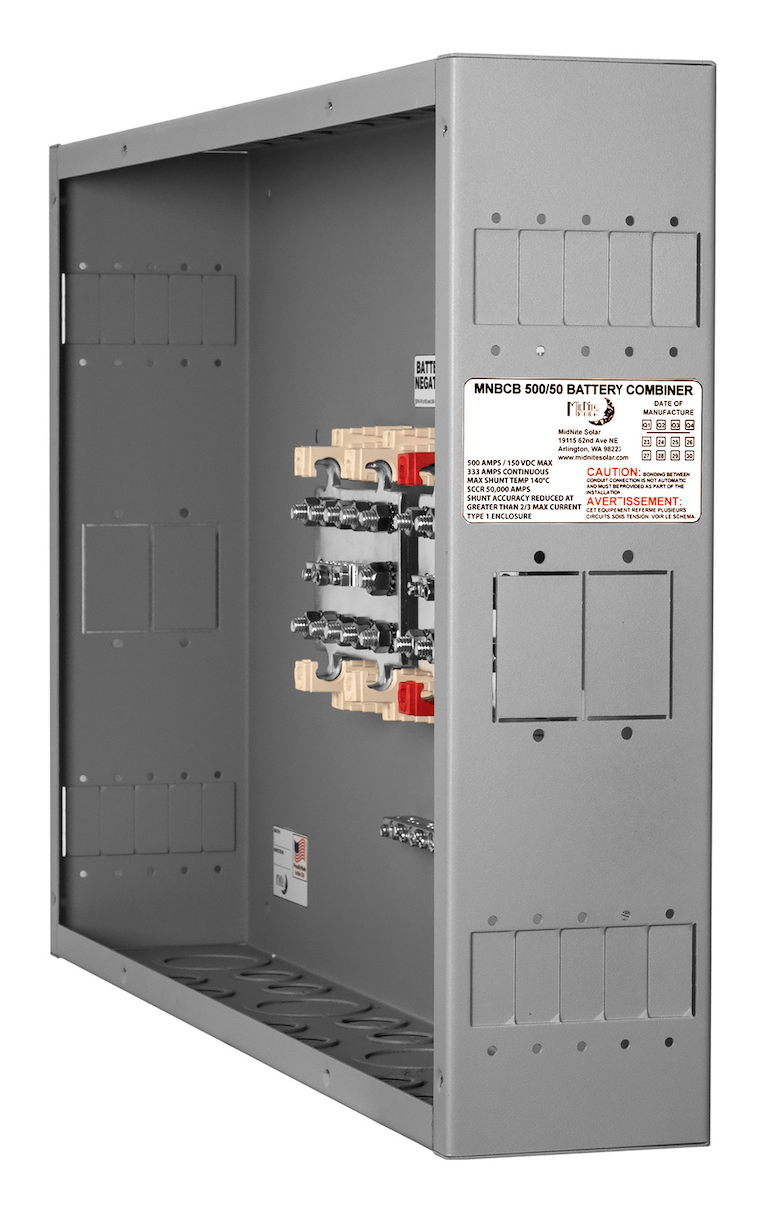

Midnites 500 amp battery combiner box is the ideal solution for systems with with Multiple inverters or multiple series connected batteries. The Midnite MNBCB-500/50 battery combiner is the best solution weve found for medium to large battery-based systems. There are plenty of conduit knockouts and breaker slots for installing a large number of battery conductors with overcurrent protection.

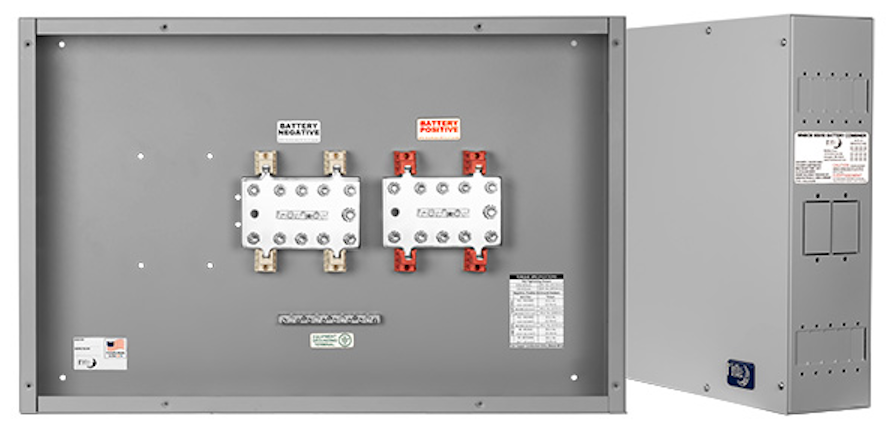

MidNite 500amp battery combiner box includes a 500A Positive and Negative bus bar with 3/8 inch studs. Cables can be double lugged and the copper bus bar can be drilled for additional mounting locations. We recommend you use 3/8 inch stainless bolts if you drill holes to attach more ring terminals.
The Midnite MNBCB includes positive and negative 500 amp bus bars. Optional busbars and 500a shunt are available for certain applications.
- Max. AC Voltage – 277 VAC
- Max. DC Voltage – 300 VDC
- Max. Wire Size – 4/0
- Number of Spaces – 24
- Environment Rating – Type 1 environmental rating (indoor)
- Warranty – 5yrs
- Made in USA
Additional Features
- Locations for up to twenty .75" wide breakers
- Locations for up to four 1.5" wide breakers
- Powder coated steel
