Description
Primus Wind Power is pleased to offer a digital wind control panel for use with all AIR Wind Turbines. The panel is easy to install and will result in a professional operator station, enhancing the beauty and value of the Hybrid system installation.

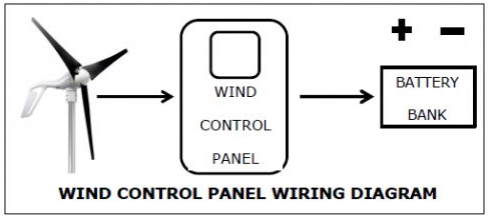

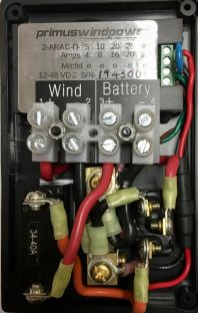

The digital wind control panel controls and monitors the wind turbine. It is equipped with a power On/Off circuit breaker, digital meter and a Stop/Run switch (for direct control of the turbine). The digital meter (equipped with a 50 amp shunt) provides critical operational information; real time battery voltage, current in amps, power in Watts and accumulated energy in W/hours(re–settable). A clearly marked rear terminal block, The WCP terminal blocks, which will accept an 8 AWG or smaller wire size, provides for easy interconnect of the two turbine wires and two battery power wires.If a larger gauge wire is required, use a few inches of 8 AWG wire to transition to the terminal blocks. Panel is fully factory calibrated and ready for installation.
Includes a full indoor only, black plastic enclosure. Dimensions are: L –6.5 inch / W –4.25 inch/ D –2.5 inches. The digital wind control panel helps to reduce installation costs and makes wiring a snap with just 4 wires to connect. The panel is available in 5 models specific to the AIR Wind Turbine voltage and type.
Additional Features
- Equipped with a power On/Off circuit breaker
- Digital Meter
- Stop/Run Switch (for direct control of the turbine)
- Real time battery voltage, Current, Watts in and total production in Watt-Hours
