Description
Rated at up to 60 amperes of DC output current, the Outback MX60 can be used in systems to charge 12, 24, 36, 48, and even 60 volt battery banks. The MX60 can accept PV open circuit voltages as high as 150VDC. The MX60’s control set points are fully adjustable to allow its use with virtually any battery type.
The revolutionary design of the Outback MX60 allows the use of high voltage PV arrays to charge a much lower battery voltage – such as charging a 24 volt battery from a PV array wired for 48 volts. This type of configuration reduces losses, increases efficiency, and allows the use of smaller wire from the PV array to the controller.

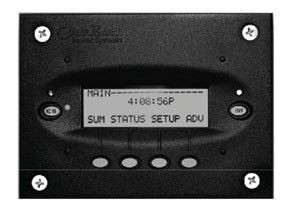

An optional Outback Mate can be connected to the Outback MX60 to allow monitoring and control of up to eight MX60’s (or a combination of Outback controllers and inverters from a distance of up to 300 feet). The Mate also includes a data port for connection to a PC computer for data monitoring.
This charge controller is not available and has been replaced by the Flex Max 60.
Additional Features
- Easy to use and understand LCD display
- Rated to 60 A DC output current
- Fully adjustable control set points
- Allows use with virtually any battery type
- An optional Mate can be added to allow monitoring and control from up to 300 feet away
- Two year warranty
